The Anomaly Serial Killer DollHunting missing checks with anomaly detection
In our previous article we focused on taint-style vulnerabilites, i.e., those that are essentially due to the lack of input sanitization which allows tainted, user-controlled data to reach sensitive functions. Some of these arise due to missing checks in code, such as:
failure to check authentication, authorization or other conditions related to the security logic of the application,
APIusage, like not checking the buffer size, leaving files open, not freeing memory after allocating, etc.
In production-grade systems, however,
these checks are routinely performed since
experienced developers are used to them.
Still, taint-style vulnerabilities happen,
as was the case with a
Java 7 runtime
which allowed arbitrary classes to be uploaded,
leading to a massive distribution of malware.
But when taint-style vulnerabilities do occur, they are certainly anomalies.
Thus, searching for this kind of situation
(in mature software systems) is a problem
for which anomaly detection
lend themselves well.
Given a function,
Chucky finds all the sources and sinks referenced by it.
If you’ve been following our latest articles,
it should come as no surprise that the first step in the procedure
is to perform a robust parsing.
Notice the use of the word robust above: as opposed to the strict parsing done by linters and compilers, which fails at the first mistake, this type of parsing requires neither a proper build environment nor even complete or correct code.
Next, for each source or sink detected in the previous steps, the following steps are performed:
Neighborhood discovery: identify the element’s context.
Lightweight tainting: analyze the flow of data in the program.
Embed the functions into a vector space. Needed to apply any machine learning algorithm.
Perform anomaly detection via a simple score when comparing to the k nearest neighbors.

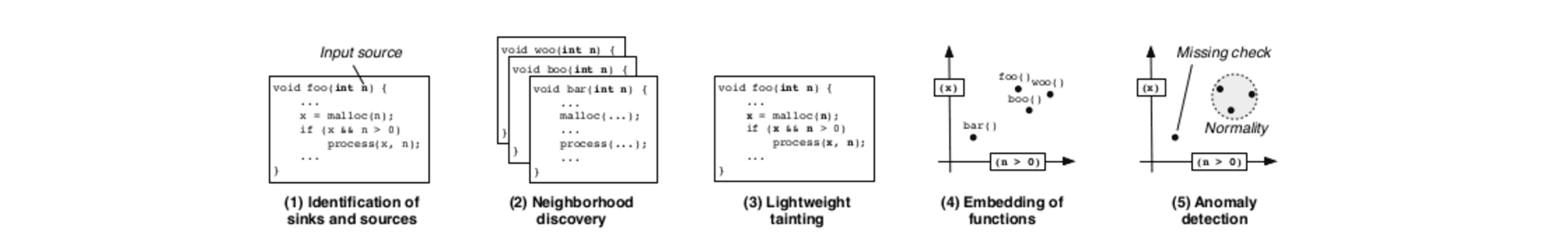

Figure 1. Overview of the anomaly detection process. Taken from
In order to determine functions similar to the current one, the bag of words approach from the field of natural language processing is used. A coarse way to represent a document is by just counting word frequencies, and forgetting about all structure, syntax, etc. In this fashion, this and other articles in this blog would have high frequencies for words like "security" and "vulnerability", but low ones for "coffee" and "recipe". This is a (perhaps too) simple, yet effective, way to distinguish security blogs from coffee-lovers blogs, but maybe it wouldn’t be able to distinguish sites which sell coffee from those who grow it.
In order to avoid a situation where very common words with little significance like "a", "in", etc, rank too high, the inverse document frequency is used. Multiplying the relative term frequency by the inverse document frequency gives a lower ranking to words like the above and higher ranks to the rare ones, so as to strike a balance.
The result of applying this, to every function in the code to analyze,
is that every function is represented as a vector.
Thus, distances between them can be computed,
and its k nearest neighbors
chosen as that function’s neighborhood.
Intuitively, this should couple every function
with the k most similar functions in terms of the
API symbols they use.
Thus, functions that use a lot of memory allocations would be put together,
a method that has many return points
would be paired with functions that also have many return points, etc.
Other than knowing which functions are similar to the one under scrutiny,
we also need to know which checks or conditionals
are really security-relevant, and which ones are just noise.
This, however, is not so easy since we need to take into account
the flow of data between variables,
which sounds more like a job for symbolic execution
and taint analysis, which is in fact what

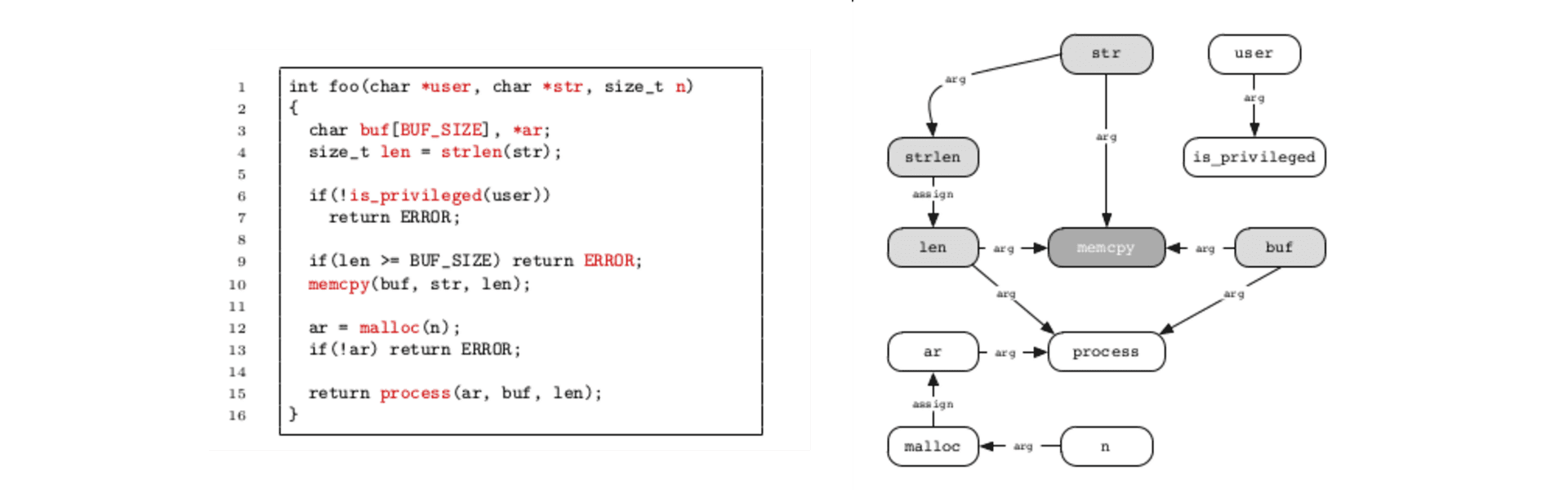

Figure 2. Tainted dependency graph (right) for the snippet to the left
This graph is then traversed both in the source-to-sink and sink-to-source direction to determine tainted identifiers, highlighted in gray above.
Next we need to represent the function as a vector.
Again, the authors use a bag-of-words-like approach,
where instead of the term frequency or inverse document frequency,
a simple indicator function is used:
1 if a term is contained and
0 if not.
Furthermore, the "words" are taken from the abstract syntax tree
and later normalized since we don’t care about particular operations
> are all treated as comparisons),
particular numbers used or particular identifier names.
Thus, from the snippet above,
we would obtain a vector representation such as this one:

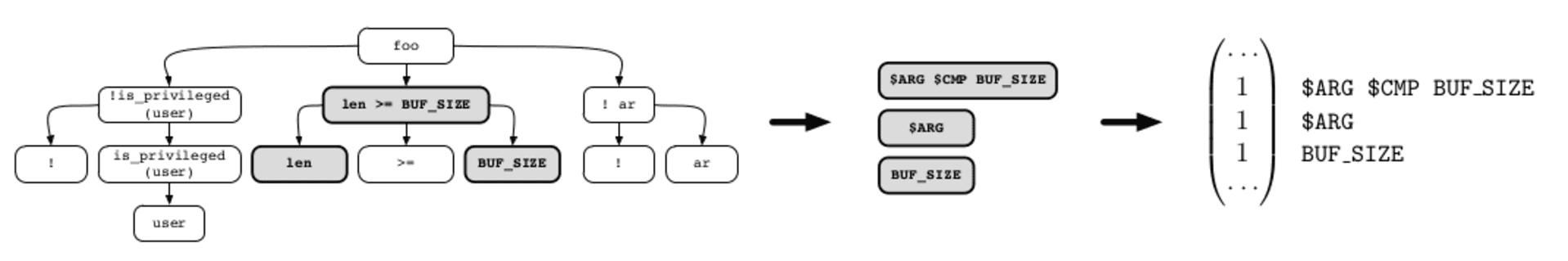

Figure 3. AST, normalization and embedding of the above snippet
Now we can extract a model of "normality" for every source or sink of interest in every function. This is defined as the center of mass (essentially an average) of all the vector representations taken over the set of neighbors of the function that contains the source or sink of interest. This is still a vector, and each of its components tells us the fraction of neighbors that contain a particular check.
Subtracting the vector representation of a function from this model of normality also gives us some insight. Negative entries in this difference vector correspond to expressions checked in this function, but not so much in its neighbors, while positive entries show the opposite: checks that are commonly performed by syntactically similar functions but are missing in this particular function, i.e., the missing checks that we sought from the beginning. An anomaly score can be given to each function as the maximum element in the vector, given that functions which are mostly similar to their neighbors, except for one missing check, are more likely to contain security vulnerabilities than functions which are just altogether different from their neighbors.
Chucky was originally tested on five popular open-source projects,
versions of which contained published missing-check
Also, the code was modified to introduce artificial vulnerabilites.
This, of course, depends on the number of neighbors
that should be taken into account.
The results of this experiment to determine its capability
to find known vulnerabilities are summarized below:

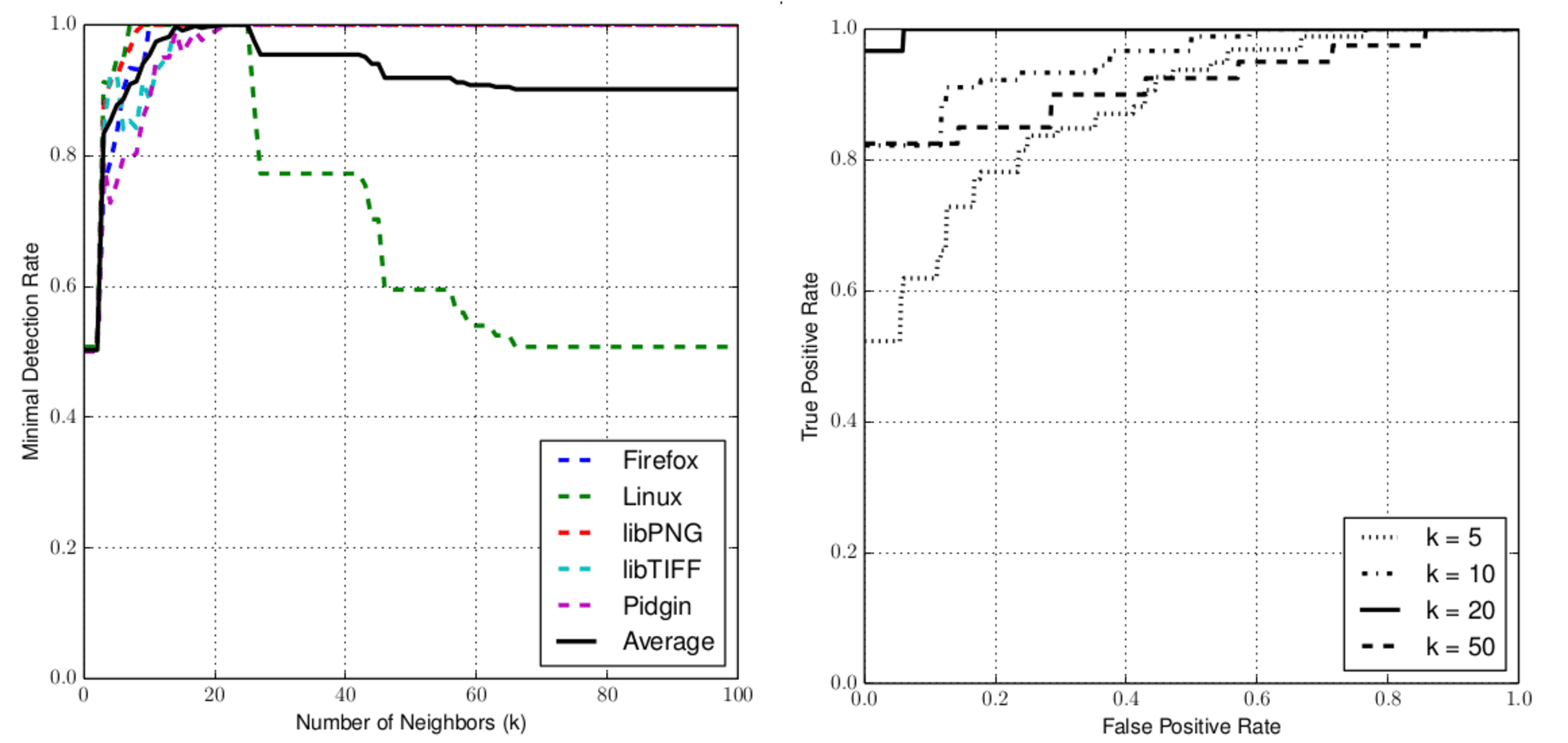

Figure 4. Artificial test results for
Notice that with 25 neighbors the results are perfect, i.e. no false positives and complete recall. For other reasonable values of k the results are also good.
But can it help in finding previously unknown vulnerabilites,
as was set in the authors objectives?
Chucky was able to find 12 zero-day vulnerabilites
One of them is particularly easy to exploit.
In the function
Chucky reports a failure to check the value passed to
An attacker can thus trigger this vulnerability
by sending the message
thus making one of the sensitive sinks on the victim side
leading to an application crash.
Chucky has shown us how relatively simple,
but "intellectually transparent" machine learning models
can tell us a lot about where to look for vulnerabilities.
However, let us remember that this approach
is not free of false positives and also
that it doesn’t pretend to replace human auditing,
only to accelerate it
by aiding us in not having to review code that is most likely safe.
- F. Yamaguchi, C. Wressneger, H. Gascon, K. Rieck (2013). Chucky: exposing missing checks in source code for vulnerability discovery. 20th ACM conference on computer and communications security.
